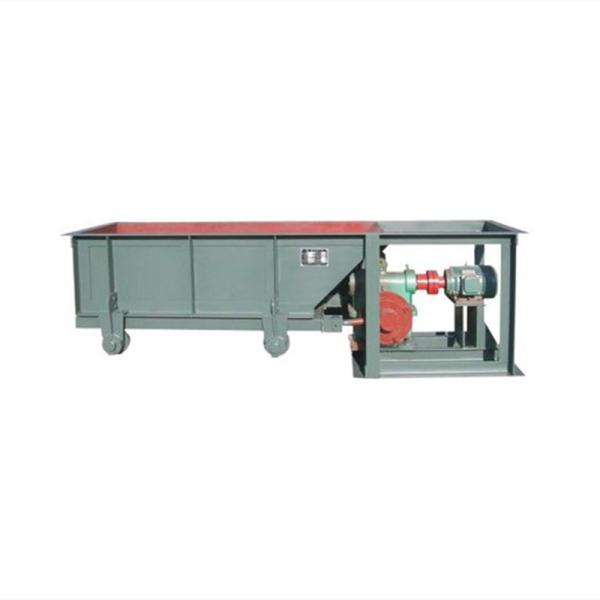

Mining Equipment Mineral Feed Machine Vibrating Chute Feeder for Ore Dressing Feeding
Features
Chute feeder is used to take out lump and granular materials from material warehouse and send them to various receiving devices, but it is not suitable for transporting concentrate fines and other powder materials. It is applicable to industries of ore dressing, coal, chemical industry, etc.
Chute feed is generally hoisted at the discharge opening of the ore storage bin. The bottom plate of chute makes reciprocating motion for feeding, with jig frequency of 20-60 times/min and length of stroke of 20-200mm. The feeding quantity depends on the length of stroke. Method for adjusting length of stroke: it is appropriately adjusted by adjusting the offset of eccentric gear of driving device.
According to ore dressing scale and operation system, put forward appropriate feeder specifications for matching production by the manufacturer. The motor can be changed to adjustable-speed motor with special orders.
Parameter
| Specifications | Discharge hole (W x H) | Max. feed particle size | Number of reciprocating motion at the bottom of chute | Crank throw | Rotating speed of crank connecting rod | Feeding capacity | Power | Overall dimensions (L x W x H) | Weight |
| | mm | mm | times/min times/min | mm | r/min | t/n | kw | mm | kg |
| 400×300 | 400 × 300 | 200 | 48.47 | 0-50 | | 0-50 | 3 | 2820×800×600 | 792 |
| 400×400 | 400×400 | 100 | 18.8 | 1.2 | | 2.5-3 | 4 | 2350×725×625 | 535 |
| 600 × 500 | 600 × 500 | 205 | 38.9 | 0-50 | | 10.5-25.5 | 4 | 2750910×855 | 1054 |
| 700×500 | 700×500 | 250 | 20-30 | | | | 4 | 3200×950×900 | 1100 |
| 980×1240 | 980×1240 | 350 | 23.7 | | | 36-90 | 7.5 | 3560×1000×1070 | 1700 |
| 1000×1900 | 1000×1900 | 300 | 27 | | 27 | 300 | 7.5 | 3900×1590×1340 | 2691 |
| 1060×2900 | 1060×2900 | 300 | | | | 400-900 | 25-40 | 4585×2953×1756 | 10160 |
| 1200×1000 | 1200×1000 | 400 | 30.85 | 50-125 | 30.85 | 165-415 | 15 | 3600×1357×1310 | 2600 |
| 1400×2000 | 1400×2000 | 300 | 8; 15 | 50 | 8.15 | 50-101 | 7.5 | 3920×1777×1103 | 3472 |
| 1400×2300 | 1400×2300 | 300 | 30.85 | 90-150 | 30.85 | 430-900 | 18.5 | 4460×2090×3804 | 6895 |
Why choose our company machine?
Q1: Hi, are you a mining machinery manufacturer?
Answer: Yes, we are a professional manufacturer of mining machine. Our company welcomes customers to visit our factory at any time.
Q2: How long is the warranty period of your equipment? Does your company provide spare parts?
Answer: The warranty period of our machine is one year. For those wearing parts, we guarantee to provide high-quality parts for a long time.
Q3: How long does it take to deliver?
Answer: Production usually starts after receiving the advance payment. Small machine is guaranteed to be delivered within one month. Large-scale machine is guaranteed to be delivered within 2-3 months.
Q4: Do you provide machine operation guidance?
Answer: Yes. We have professional engineers for installation, commissioning and operation guidance.
