Mining Mixer Machine Gold Separation Leaching Tank

Product Categories

Anhui Sinomining Machinery Co., Ltd

Contact Now

Mining Mixer Machine Gold Separation Leaching Tank

Brand Name : Y&X

Model Number : Mining Mixer

Certification : Leaching Tank

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Delivery Time : 30 days

Packaging Details : Standard Shipping Packaging

Purpose : Gold Separation

Attributes : Mining Mixer Machine

Name : Mining Mixer Machine Gold Separation Leaching Tank

Keywords : Gold Leaching Tank

Rotating speed : 502

Contact Now

Mining Mixer Machine Gold Separation Leaching Tank

Feature

The impeller rotating in the tank is similar to the function of centrifugal pump. It uses its suction to absorb the material pump from the feed pipe to the cavity of impeller and then fling the pulp out along the centrifugal directions around the impeller. The slurry which was flung out fills the tank and makes the solid phase to suspend, thus achieving lifting effect of agitation. When the altitude difference is inadequate or relative less for pumping due to the configuration of equipment, lifting agitation tank can be adopted.

Advantage

(1) The air enters the tank through the transmission hollow shaft, and the air disperses evenly with the blade agitation;
(2) Smooth movement of ore flow, even pulp mixture, less power consumption;
(3) Compact structure, easy to maintain;
(4) Hollow shaft is ventilated to the bottom end, and the air enters into the tank with uniform distribution and small bubbles;

Name	Mining Mixer Machine Gold Separation Leaching Tank
Keyword	Gold Separation Leaching Tank
Purpose	Gold Separation

Parameter

Models	Effective volume	Diameter of tank	Rotating speed	Driving motor		Lifting height	Weight
Models	Effective volume	Diameter of tank	Rotating speed	Models	Power	Lifting height	Weight
	m³	mm	r/min		kw	m	t
XBT-Ф1000×1500	1	1000	502	Y132S-4	5.5	1.0	0.99
XBT-Ф1500×1800	3	1500	400	Y132M-4	7.5	1.2	1.62
XBT-Ф2000×2000	6	2000	363	Y180L-6	15	1.5	2.26
XBT-Ф2500×2500O	12	2500	363	Y200L2-6	22	1.5	4.27
XBT-Ф3000×3000	19,1	3000	363	Y225M-6	30	1.5	6.1

Why choose our company machine?

Q1: Hi, are you a mining machinery manufacturer?
Answer: Yes, we are a professional manufacturer of mining machine. Our company welcomes customers to visit our factory at any time.

Q2: How long is the warranty period of your equipment? Does your company provide spare parts?
Answer: The warranty period of our machine is one year. For those wearing parts, we guarantee to provide high-quality parts for a long time.

Q3: How long does it take to deliver?
Answer: Production usually starts after receiving the advance payment. Small machine is guaranteed to be delivered within one month. Large-scale machine is guaranteed to be delivered within 2-3 months.

Q4: Do you provide machine operation guidance?
Answer: Yes. We have professional engineers for installation, commissioning and operation guidance.

Wholesale Mining Mixer Machine Gold Separation Leaching Tank from china suppliers

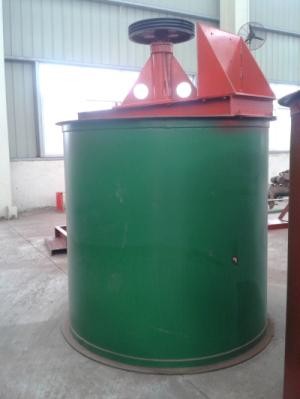

Mining Mixer Machine Gold Separation Leaching Tank Images
